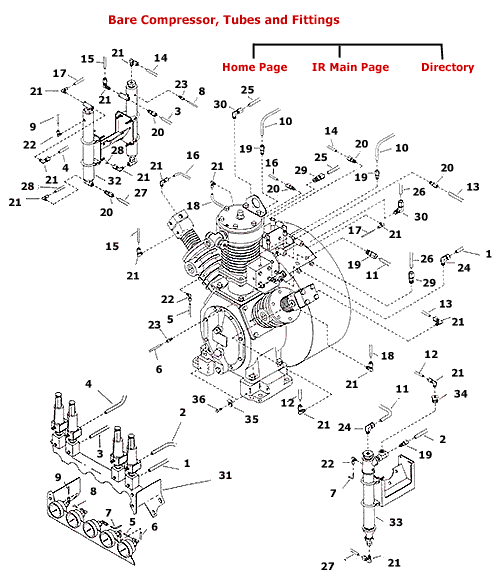

ITEM# – PART NUMBER – DESCRIPTION
1 – 32270191 – Tube, First Stage Relief Valve Block/Intercooler Tee
2 – 32270209 – Tube, Second Stage Relief Valve Block/Second Stage Trap
3 – 32249476 – Tube, Third Stage Relief Valve Block/Third Stage Trap Tee
4 – 32249484 – Tube, Fourth Stage Relief Valve Block/Fourth Stage Trap Tee
5 – 32249492 – Tube, Inlet Pressure Gauge/Inlet Cross
6 – 32270217 – Tube, First Stage Pressure Gauge/Intercooler Tee
7 – 32249518 – Tube, Second Stage Pressure Gauge/Second Stage Trap
8 – 32249526 – Tube, Third Stage Pressure Gauge/Third Stage Trap
9 – 32249534 – Tube, Fourth Stage Pressure Gauge/Fourth Stage Trap
10 – 32270266 – Tube, Second Stage Discharge/Second Stage Intercooler
12 – 32249567 – Tube, Second Stage Trap/Third Stage Inlet
13 – 32249575 – Tube, Third Stage Discharge/Third Stage Intercooler
14 – 32249583 – Tube, Third Stage Intercooler/Third Stage Trap
15 – 32249591 – Tube, Third Stage Trap/Fourth Stage Inlet
16 – 32249609 – Tube, Fourth Stage Discharge/Fourth Stage Intercooler
17 – 32249617 – Tube, Fourth Stage Intercooler/Fourth Stage Trap
18 – 32270183 – Tube, Frame Vent/First Stage Inlet
19 – 32246027 – Connector, Tube – 1/2 x 3/8″
20 – 32246019 – Connector, Tube – 3/8 x 1/4″ 21 – 32245987 – Elbow, Tube – 3/8″ x 1/4″
22 – 32245979 – Elbow, Tube – 1/4 x 1/8″
23 – 32246001 – Connector, Tube – 1/4 x 1/8″
24 – 32245995 – Elbow, Tube – 1/2 x 3/8″
25 – 32288573 – Tube, First Stage Discharge/Intercooler Manifold
26 – 32288581 – Tube, Intercooler/Second Stage Manifold
27 – 32270969 – Tube, Second Stage Trap/Fourth Stage Trap
28 – 32270977 – Tube, Fourth Stage Trap/Third Stage Trap
29 – 32246043 – Connector, Tube – 1/2 x 1/2″
30 – 32270274 – Elbow, Tube – Male – 1/2 x 1/2″ 31 – 32249666 – Assembly, Gauge Panel
32 – 32245805 – Assembly, Condensate Drain Trap – Third/Fourth Stage
33 – 32233967 – Assembly, Condensate Drain Trap- Second Stage
34 – 95038147 – Bushing, Reducing – 3/8″ x 1/4″
35 – 32275422 – Clamp, Tube – 3/8″
36 – 95423604 – Capscrew, Hex – 3/8-16 x 3/4″
