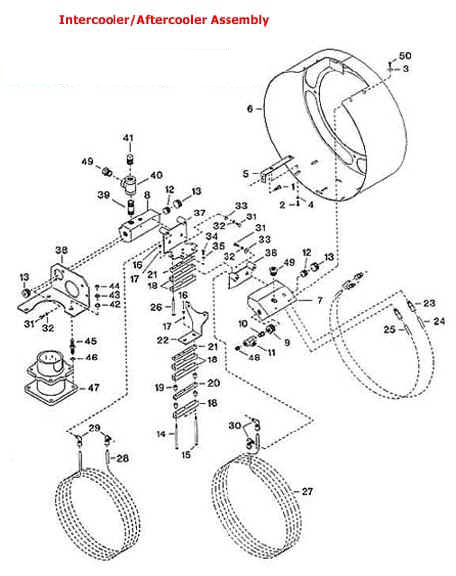

ITEM# – PART NUMBER – DESCRIPTION
1 – 32175556 – Capscrew – Hex 3/8-16×1″ Serrated Washer Head
2 – 32175572 – Capscrew – Hex 1/4-20 x 1/2″ Serrated Washer Head
3 – 95069597 – Washer, Flat – 3/8″
4 – 95094298 – Washer, Flat – 1/4″
5 – 37139300 – Brace – Intercooler
6 – 31197312 – Shroud, Intercooler
7 – 32268815 – Manifold, Outlet
8 – 32268799 – Manifold, Inlet
9 – 95038121 – Bushing, Reducing – 1-1/4 x 3/8″
10 – 95691077 – Nipple, Close – 3/8 x 1″
12 – 95033411 – Plug, Pipe – Square Countersunk-3/4″
13 – 95033338 – Plug, Pipe – Square Countersunk 1-1/4″
14 – 95079786 – Capscrew – Hex 1/4-20 x 5″
15 – 95865358 – Bolt – Hex 1/4-20 x 6″
16 – 95077483 – Nut, Elastic Stop – 1/4-20
17 – 95094298 – Washer, Flat – 1/4″
18 – 30710255 – Clamp, Spacer Tube – 3/4″
19 – 32181018 – Spacer, Beltgaurd -3/8 x 1/2″
20 – 30710263 – Clamp, Spacer Tube – 1/2″ 21 – 30708143 – Clamp, Cooler Tube
22 – 32203184 – Bracket, Intercooler
23 – 95229571 – Connector, Tube – 1/2 x 3/8″
24 – 32243040 – Tubing – Finned 59-1/4″ – First/Second Stage
25 – 32243057 – Tubing – Finned 54-1/2″ First/Second Stage
26 – 95098497 – Bolt Machine – Hex 1/4 x 3-1/2″
27 – 30701437 – Tubing, Finned 3/8″ Dia. Third Stage Intercooler
28 – 30701429 – Tubing, Finned 5/16″ Dia. Aftercooler
29 – 95244356 – Elbow, Tube – 5/16 x 1/4″
30 – 95244364 – Elbow, Tube 3/8 x 1/4″ 31 – 95035150 – Capscrew – Hex 5/16-18 x 5/8″
32 – 95675526 – Lockwasher – 5/16″
33 – 97004915 – Washer, Flat – 5/16″
34 – 95675526 – Lockwasher – 5/16″
35 – 95825139 – Washer, Shake-Proof – 1/4″
36 – 30710446 – Support, Cooler
37 – 30710420 – Support, Cooler
38 – 32268997 – Bracket, Intercooler
39 – 95273355 – Nipple- Close 3/4 x 2-1/2″
40 – 95006557 – Tee, – Pipe 3/4″ 41 – 95002143 – Plug, Pipe- 3/4″
42 – 95069589 – Washer, Flat – 1/2″
43 – 95081824 – Washer, – Lock 1/2″
44 – 95077798 – Nut – Hex 1/2 – 13
45 – 32268856 – Stud – 1/2-13 x 2.81″
46 – 95674701 – Gasket – Copper Washer
47 – LINK ACTIVE – DATA MISSING
48 – 95038253 – Bushing, Reducing – 3/8 x 1/8″
49 – 95037438 – Bushing, Reducing -3/4 x 1/2″
50 – 95423604 – Capscrew – Hex 3/8-16 x 3/4″
