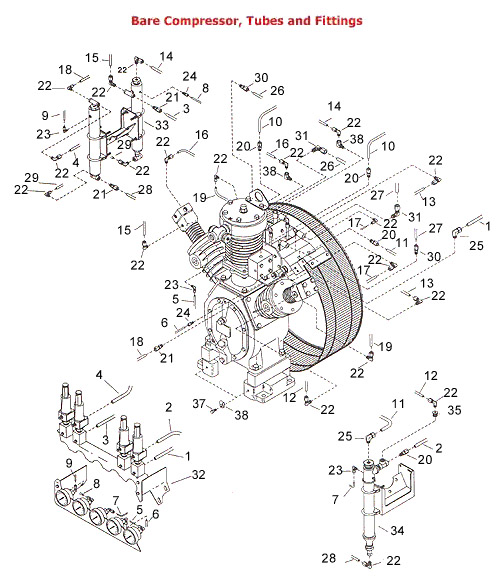

ITEM# – PART NUMBER – DESCRIPTION
1 – 32282121 – Manifold – Intercooler- Inlet
2 – 95229571 – Connector, Tube – 1/2 x 3/8″
3 – 32282139 – Manifold, Intercooler- Outlet
4 – 30710446 – Support, Cooler
5 – 97004915 – Washer, Flat – 5/16″
6 – 95244364 – Tube, Elbow – 3/8 x 1/4″
7 – 95035150 – Capscrew, Hex -5/16-18 x 5/8″
8 – 95675526 – Lockwasher, 5-16″
9 – 30710420 – Support, Cooler
10 – 95244356 – Elbow, Tube – 5/16 x 1/4″
12 – 95825139 – Washer, Shake Proof 1/4″
13 – 30701437 – Tubing, Finned – Third Stage Intercooler
14 – 30701429 – Tubing, Finned Aftercooler
15 – 30708143 – Clamp, Cooler Tube
16 – 30710255 – Clamp, Spacer Tube – 3/4″
17 – 95098497 – Bolt, Machine – 1/4 x 3-1/2″
18 – 95094298 – Washer, Flat – 1/4″
19 – 95077483 – Nut, Elastic Stop -1/4-20
20 – 32243057 – Tubing, Finned – 1st/2nd Stage Intercooler 21 – 32243040 – Tubing, Finned – 1st/2nd Stage Intercooler
22 – 30710263 – Clamp, Spacer Tube 1/2″
23 – 32283186 – Capscrew, Hex – 1/4-20 x 8″
24 – 95033338 – Plug, Pipe – Square Countersunk – 1-1/4″
25 – 95033411 – Plug, Pipe – Square Countersunk – 3/4″
26 – 95038121 – Bushing, Reducing 1-1/4 x 3/8″
27 – 32203184 – Bracket, Intercooler
28 – 32181018 – Spacer, Beltguard – 3/8 x 1/2″
29 – 95691077 – Nipple, Close – 3/8 x 1″
30 – 95063467 – Tee, Pipe 3/8″ 31 – 95038253 – Bushing – Reducing 3/8 x 1/8″
32 – 32268997 – Bracket, Intercooler
33 – 95273355 – Nipple, Close 3/4 x 2-1/2″
34 – 95006557 – Tee, Pipe – 3/4″
35 – 95002143 – Plug, Pipe – 3/4″
36 – NOT SHOWN ON DRAWING – DATA NOT AVAILABLE
37 – 32282964 – Manifold Aftercooler
38 – 95119905 – Capscrew, Hex -3/8-16 x 2-1/2″
