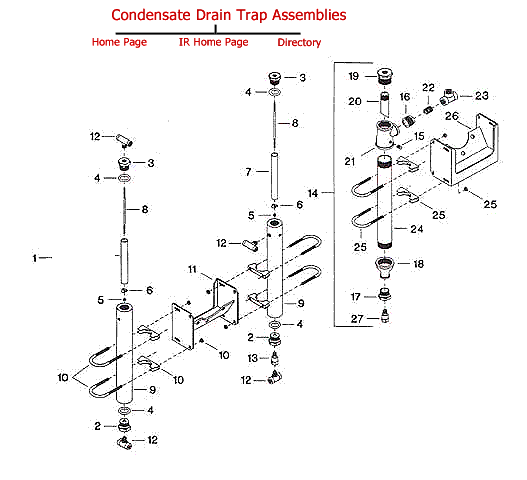

ITEM# – PART NUMBER – DESCRIPTION
1 – 32245805 – Assembly, Drain Trap – Third/Fourth Stage
2 – 30278170 – Bushing, Aftercooler
3 – 30281000 – Plug, Top- Condensate Trap
4 – 95286456 – O-Ring
5 – 31384522 – Nut, Locking #10-24
6 – 30210488 – Cap, Condensate Drain Trap
7 – 30218127 – Shell, Condensate Trap Separator
8 – 30217095 – Rod, Center
9 – 32141467 – Trap, Condensate
10 – 32001810 – Clamp, Two-Piece
11 – 32163149 – Bracket, Trap Mounting
12 – 32249633 – Tee, Male Branch
13 – 32162901 – Valve, Check
14 – 32270472 – Assembly, Drain Trap – Second Stage
15 – 95033585 – Plug, Pipe – Solid Square Head 1/8″
16 – 95038196 – Bushing, Reducing- 1 x 3/8″
17 – 95037412 – Bushing, Reducing 1/2M x 1/4″
18 – 95010765 – Coupling, Reducing 1-1/2 x 1/2″
19 – 32288177 – Connection, Trap Outlet
20 – 32141400 – Pipe, Inlet
21 – 32270449 – Tee, Condensate Trap
22 – 95691077 – Nipple, Close – 3/8 x 1″
23 – 95006532 – Tee, Pipe
24 – 32270456 – Shell, Condensate Trap
25 – 32001810 – Clamp, Two-Piece
26 – 32163149 – Bracket, Trap Mounting
27 – 32162901 – Valve, Check
