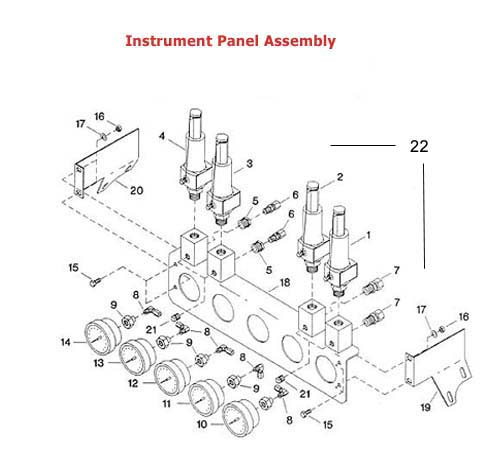

ITEM# – PART NUMBER – DESCRIPTION
1 – 32270373 – Valve, Relief -200 PSIG – First Stage
2 – 32270381 – Valve, Relief -800 PSIG – Second Stage
3 – 32270399 – Valve, Relief -2400 PSIG – Third Stage
4 – 32270308 – Valve, Relief -5800 PSIG – Fourth Stage
5 – 95037412 – Bushing, Reducing – 1/2″ M x 1/4″ F
6 – 32246019 – Connector, tube – 3/8 x 1/4″
7 – 32246043 – Connector, Tube – 1/4 x 1/2″
8 – 32245979 – Elbow, Tube – 1/4 x 1/8″
9 – 32235103 – Coupling, Reducing – 1/4 x 1/8″
10 – 32270407 – Gauge, Pressure -0-30 PSIG/0-30 Vacuum-Inlet
11 – 32026361 – Gauge, Pressure 0-300 PSIG – First Stage
12 – 32270423 – Gauge, Pressure 0-1500 PSIG – Second Stage
13 – LINK BROKEN – DATA NOT AVAILABLE
14 – 32270324 – Gauge, Pressure -0-10000 PSIG – Fourth Stage
15 – 32164634 – Capscrew, Serrated Hex Head – 5/16 x 3/4″
16 – 95876959 – Nut, Lock – 5/16″
17 – 97004915 – Washer, Flat – 5/16″
18 – 32219412 – Panel, Gauge
19 – 37143450 – Support – Right-Hand
20 – 37143443 – Support – Left-Hand
21 – 95033593 – Plug, Pipe – 1/4″
22 – 32270506 – Assembly, Instrument Panel – Complete
